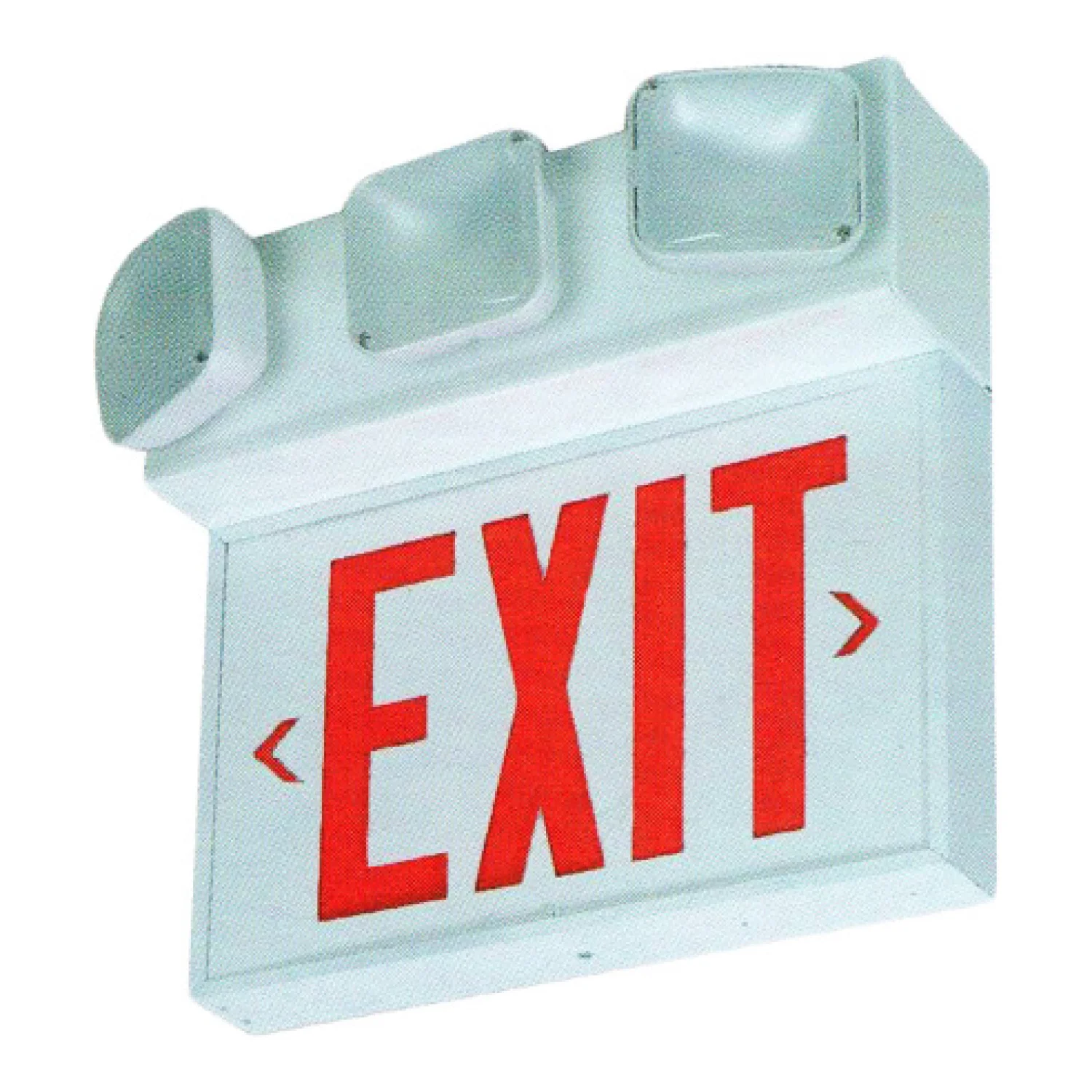

ECNY
ECNY
$0.00
• High-quality extruded aluminum construction
• Wall mount only
• Mounts to a standard 3-1/2” octagonal or 4” square junction box
• 8” EXIT letters with 1” stroke
• Lead-Calcium battery is standard, and provides a minimum of 90 minutes of illumination in emergency mode
• Meets UL 924, NFPA 101, NEC and OSHA illumination standards.
• 5-year warranty on housing and electronics
Remote Capacity:
Letter Color:
Housing Color:
Number of Heads:
Quantity:
FEATURES
- New York City approved extruded aluminum combination unit
- Designed for wall mounting
- Choice of one, two, or three integral EM heads
- Remote capable: choice of 30W or 50W unit capacity
CONSTRUCTION
- Rugged, durable extruded aluminum construction
- Mounts easily to standard 3.5” octagonal or 4” square junction box
ILLUMINATION
- Utilizes two high efficiency 1W LED emergency heads in emergency mode; consult factory for additional lamp options
- EXIT letters are 8” tall with 1” stroke, illuminated by long-lasting high-output AlInGaP LEDs with a rated life of 10+ years
Electronics
- Dual-voltage input capability: 120/277V
- Low-voltage disconnect
- AC lockout Installation
- Brownout protection
- AC indicator LED with test switch
Battery
- Lead-calcium battery is standard
- Provides a minimum of 90 minutes of illumination in emergency mode
- Operating temperature range: 0° C to 40° C
Compliance
- Meets or exceeds UL 924, NFPA 101, NEC and OSHA illumination standards
Warranty
- 5 year warranty on housing and electronics, battery is prorated
