FEATURES

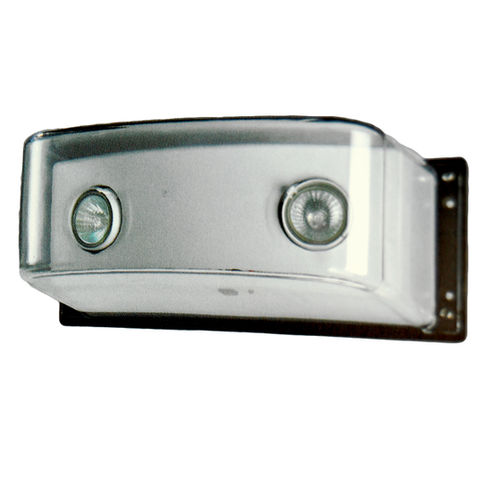

• Thermoplastic emergency light with polycarbonate shield

• Designed for locations where rugged protection is required

• Designed for wall mounting

• Fast, easy installation

• Part of Astralite’s quick ship program

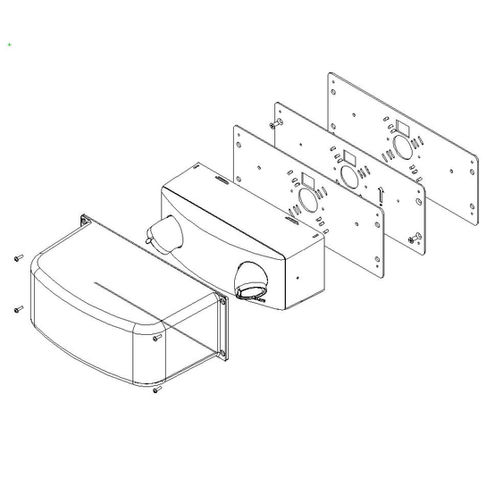

CONSTRUCTION

• Injection molded thick polycarbonate encloses the TP-100 fixture

• Mounts using a .1” thick stainless steel back plate

• VRS option includes Tamperproof Mounting Screws

• 4X option includes Neoprene gaskets suitable for hose down applications

LAMP

• Utilizes two 1W LED heads in emergency mode; higher wattage lamps are available upon request, consult factory for more options

ELECTRONICS

• Dual-voltage input capability: 120/277V

• Low-voltage disconnect

• AC lockout installation

• AC indicator light with test switch

• Brownout protection

BATTERY

• Lead-calcium battery is standard and provides a minimum of 90 minutes of illumination in emergency mode; Nickel-cadmium battery offered as an option

• Operating temperature range: 10-40° C

COMPLIANCE

• Meets or exceeds UL 924, NFPA 101, NEC and OSHA illumination standards

WARRANTY

• 5-year warranty on housing and electronics. Battery is prorated
