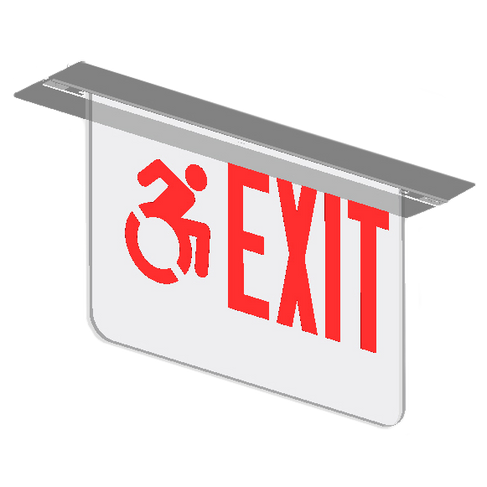

ELX-HC-CT-UNVRC

Edgelit Exit Sign With Dynamic Symbol Of Access

FEATURES

  • Edgelit exit sign with extruded aluminum trim

  • Face design feature 6” EXIT with CT symbol of access

  • Designed for recessed ceiling and wall mounting


CONSTRUCTION

  • Aluminum housing and acrylic panel

  • Replaceable chevron directional indicator offers a choice of direction on-site

  • Acrylic face panels feature 6” EXIT letters with 3/4” stroke and CT symbol of access


LAMP

  • AlGaInP L.E.D. with a rated life of 10+ years


ELECTRONICS

  • Dual-voltage input capability: 120/277V

  • AC indicator light with test switch

  • Brownout protection


BATTERY

  • EM option comes standard with nickel-cadmium battery

  • Provides a minimum of 90 minutes upon loss of power

  • Operating Temperature Range: 0-40° C


COMPLIANCE

  • Meets or exceeds UL 924, NFPA 101, NEC and OSHA illumination standards


WARRANTY

  • 5-year warranty on housing and electronics. Battery is prorated
