ELX-USM
ELX-USM
$0.00
Number of Faces:
Letter/Background Color:
Trim Color:
Power Configuration:
Options:
Quantity:
FEATURES
- Edge-lit exit sign with extruded aluminum trim
- Slim-profile design complements upscale commercial or retail applications
- Can be ordered with special wording face panel

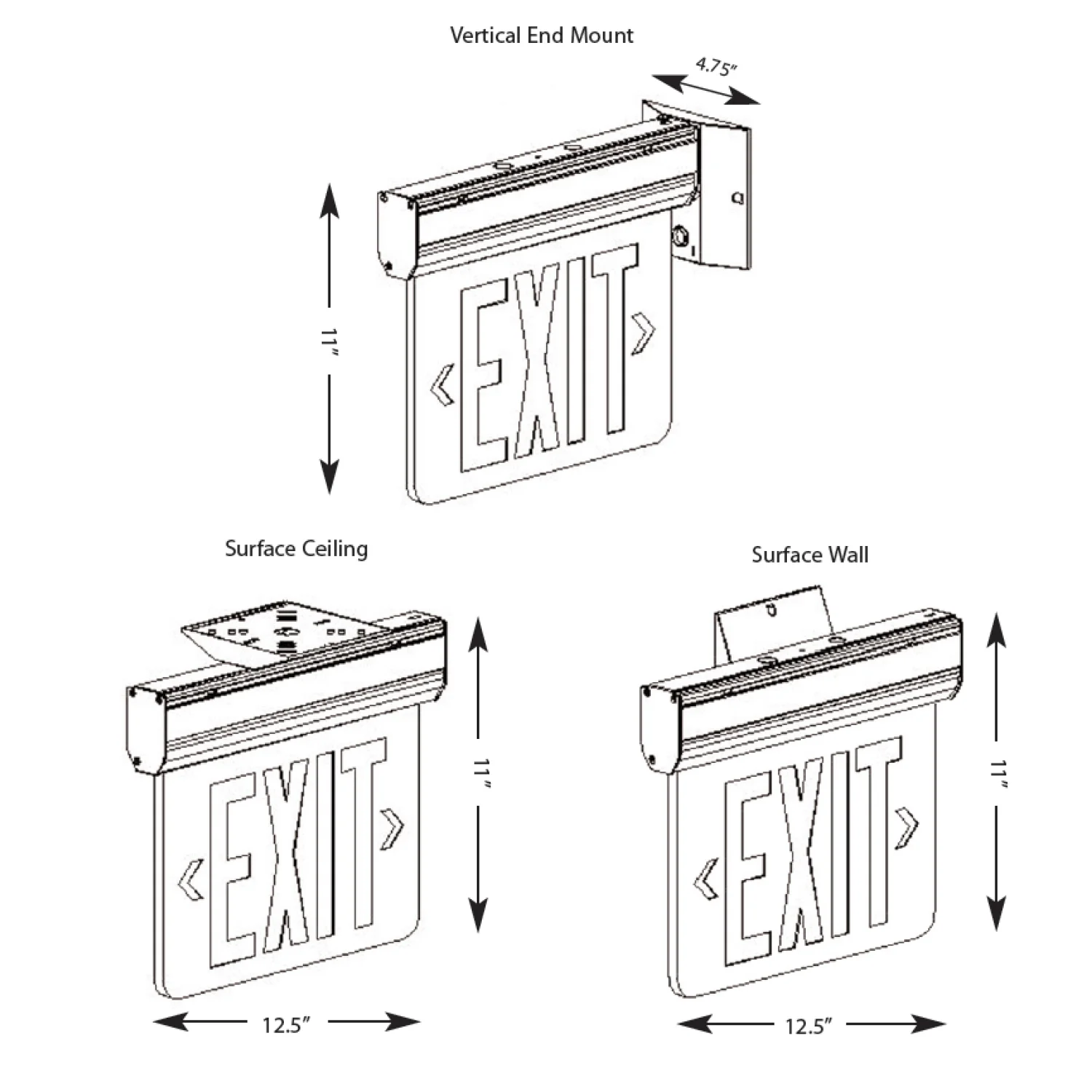

- Designed for wall, ceiling, or end surface mounting
CONSTRUCTION
- Extruded auminum housing and acrylic panel
- Available with 6”, 8”, or 10” EXIT letters
- Field-selectable chevron directional indicator offers a choice of direction on-site
LAMP
- AlGaInP L.E.D. with a rated life of 10+ years
Electronics
- Dual-voltage input capability: 120/277V
- Low-voltage disconnect
- AC indicator light with test switch
- Brownout protection
Battery
- EM option comes standard with nickel-cadmium battery
- Provides a minimum of 90 minutes upon loss of power
- Operating temperature range: 10-40° C
Compliance
- Meets or exceeds UL 924, NFPA 101, NEC and OSHA illumination standards
Warranty
- 5-year warranty on housing and electronics. Battery is prorated
