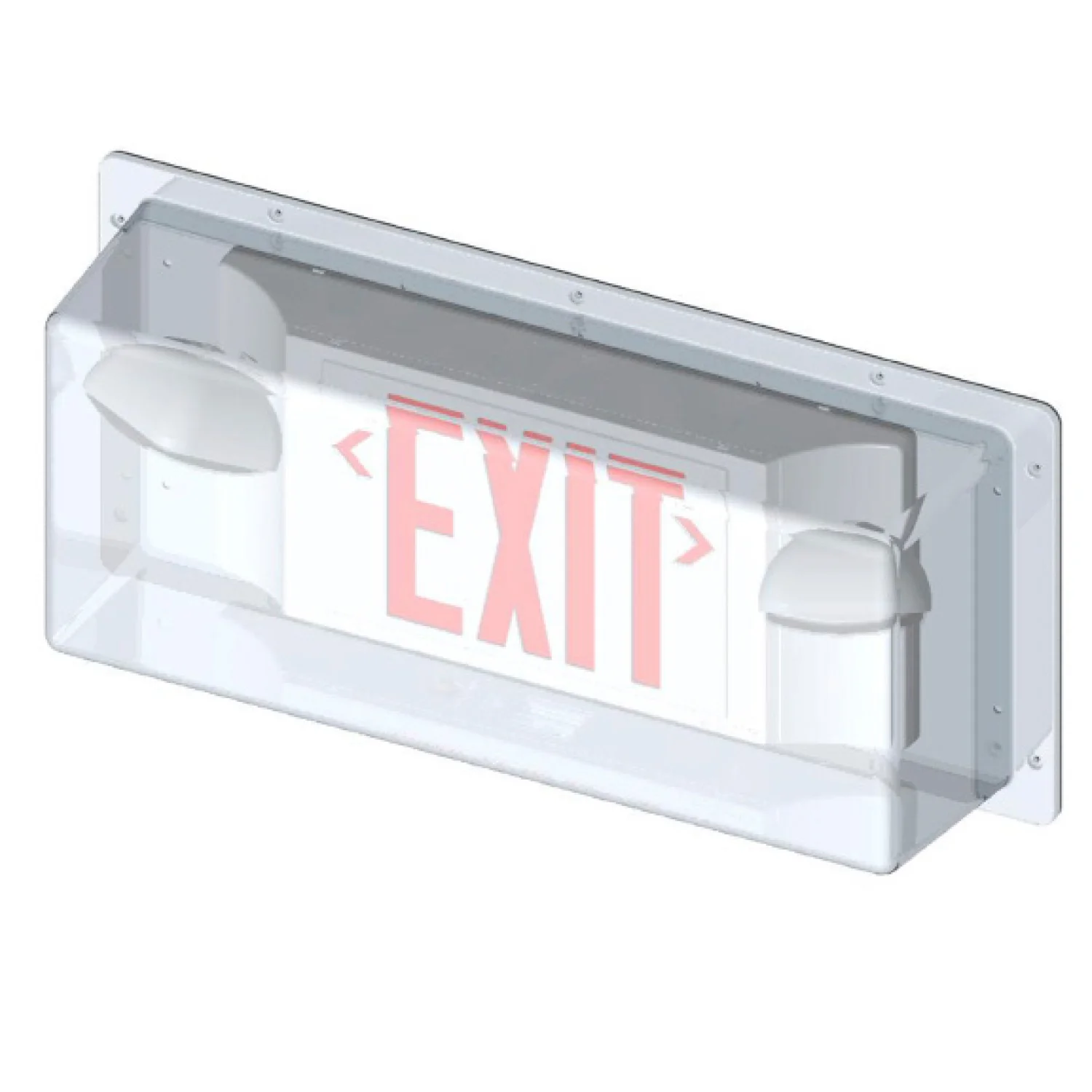

EEU-2-LED-VRS/4x
EEU-2-LED-VRS/4x
$0.00
• VRS option includes tamperproof screws; 4x option includes neoprene gasket suitable for hose-down applications.
• Wall mount only
• UV-stabilized thermoplastic housing with a UL 94 V-0 rating
• Utilizes (2) high-efficiency 1W LED emergency heads
• Nickel-Cadmium battery is standard, and provides a minimum of 90 minutes of illumination in emergency mode
• Meets UL 924, NFPA 101, NEC and OSHA illumination standards.
• 5-year warranty on housing and electronics
Type:
Remote Capacity:
Letter Color:
Housing Color:
Options:
Quantity:
FEATURES
- Vandal-resistant thermoplastic EXIT-EM combo with polycarbonate shield and optional waterproof gasket
- Designed for wall mounting only
- Remote capable: choice of no remote, 16W, or 32W unit capacity
- Part of Astralite’s quick ship program
CONSTRUCTION
- UV stabilized thick polycarbonate shield
- Mounts quickly using a .100” thick stainless steel wall plate
- VRS option includes Tamperproof mounting screws
- 4x option includes neoprene gaskets suitable for hose-down applications
- EXIT letters are 6” tall with ¾” stroke; 100 ft viewing distance
LAMP
- Utilizes two optional high-efficiency 1W LED heads in emergency mode; higher wattage lamps are available upon request, consult factory for more options
- Features a 3.6W down light standard
- Face is illuminated by long-lasting high-output AlInGaP LEDs with a rated life of 10+ years
Electronics
- Dual-voltage input capability: 120/277V
- Low-voltage disconnect
- AC lockout installation
- Brownout protection
- AC indicator light with test switch
Battery
- Nickel-cadmium battery comes standard
- Provides a minimum of 90 minutes of illumination in emergency mode
- Operational temperature range: 10-40° C
Compliance
- Damp location listed
- Meets or exceeds UL 924, NFPA 101, NEC and OSHA illumination standards
Warranty
- 5-year warranty on housing and electronics. Battery is prorated
