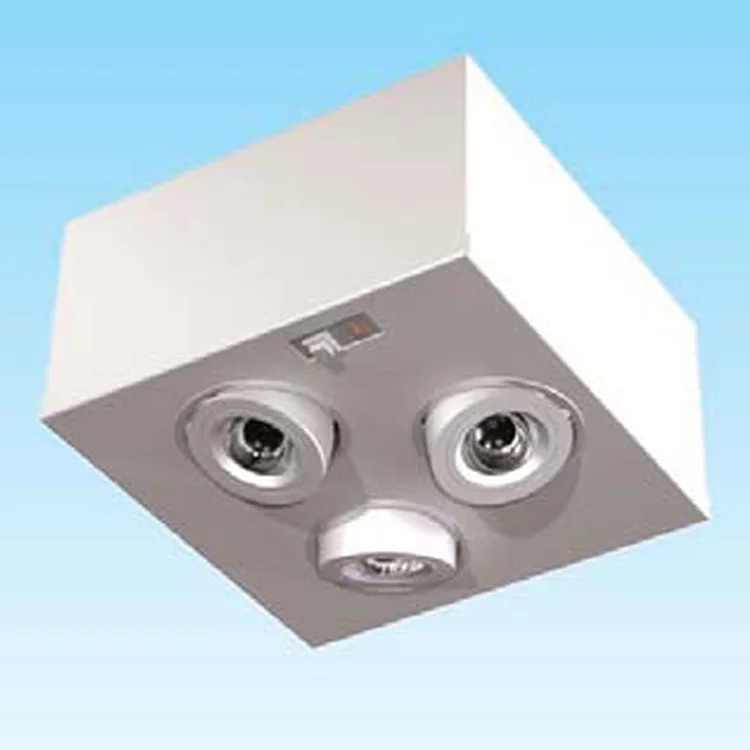

ASQ-S-MR16
ASQ-S-MR16
$0.00
Housing Color:
Unit Capacity:
DC Voltage:
Lamping:
Options:
Quantity:
FEATURES
- Steel remote-capable surface/pendant mount emergency light
- Designed for surface mounting with optional pendant mounting
- Ideal for most indoor applications
CONSTRUCTION
- Rugged 20-gauge steel construction
- Internal components are secured within the housing so that nothing will fall out when the cover is opened
- Optional strut channel can be installed for secure pendant mounting using ½” threaded rods; strut channel nuts and rods supplied by installer
LAMP
- Utilizes three 10W or 20W MR-16 halogen lamps with fully-adjustable telescoping lamp heads
- LED lamping offered as an option, consult factory for more information
Electronics
- Dual voltage input capability: 120/277V
- Low-voltage disconnect
- AC indicator light with test switch
- Brownout protection
Battery
- Lead-acid battery is standard, and provides a minimum of 90 minutes of illumination in emergency mode
- Nickel-cadmium battery offered as an option
- Operating temperature range: 10-40° C
Compliance
- Meets or exceeds UL 924, NFPA 101, NEC and OSHA illumination standards
Warranty
- 5-year warranty on housing and electronics. Battery is prorated
