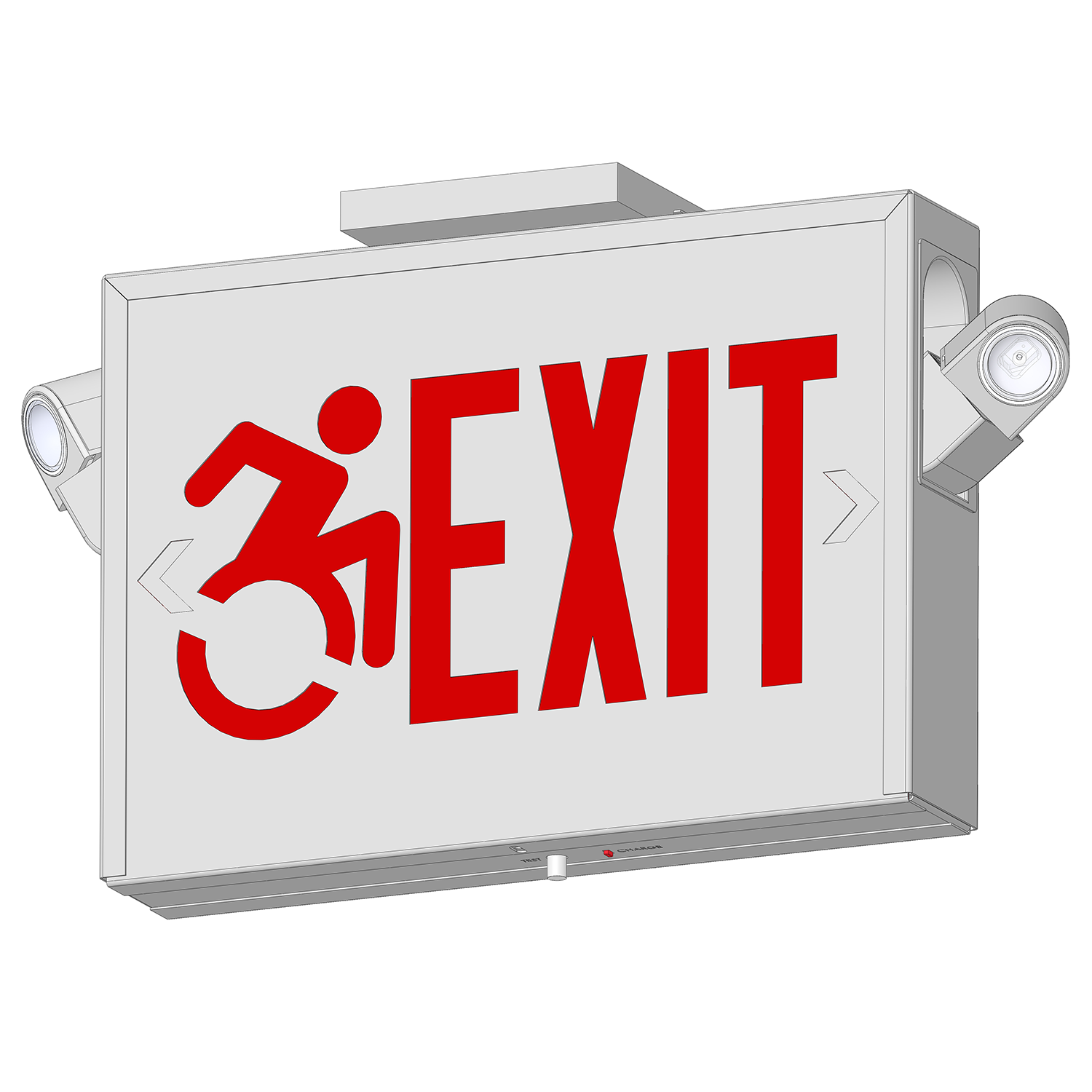

LG-8ST-200-HC-CT
LG-8ST-200-HC-CT
$0.00
• Steel Exit-EM combo
• 6” EXIT letters with 3⁄4” stroke
• Designed for ceiling and wall mount applications
• 20-gauge steel housing
• Field-selectable chevron directional indicator offers a choice of direction on-site
• 6” EXIT letters with 3⁄4” stroke and CT symbol of access
• Utilizes (2) high-efficiency 1W LED emergency heads
• EXIT letters illuminated with AlGaInP L.E.D. with a rated life of 10+ years.
• 3.6V Nickel Cadmium battery is standard
• Provides a minimum of 90 minutes of illumination in emergency mode
• Meets or exceeds UL 924, NFPA 101, NEC and OSHA illumination standards
• 5-year warranty on housings and electronics
Letter Color:
Housing Color:
Options:
Quantity:
FEATURES
- Steel EXIT-EM combination unit with CT symbol of access
- Features two fully adjustable heads
- Designed for ceiling and wall mounting
CONSTRUCTION
- 20-gauge steel construction
- Field selectable chevron directional indicator offers a choice of direction on site
- 6” EXIT letters with ¾” stroke and CT symbol of access
LAMP
- Utilizes two 1W LED heads with 360⁰ of adjustability in emergency mode
- Exit face is illuminated by long-lasting high-output AlInGaP LEDs with a rated life of 10+ years
Electronics
- Dual-voltage input capability: 120/277V
- Brownout protection
- Low-voltage disconnect
- AC indicator light with test switch
Battery
- Nickel-cadmium battery comes standard
- Operating temperature range: 0° C to 40° C
- Provides a minimum of 90 minutes of illumination in emergency mode
Compliance
- Meets or exceeds UL 924, NFPA 101, NEC and OSHA illumination standards
Warranty
- 5-year warranty on housing and electronics. Battery is prorated
